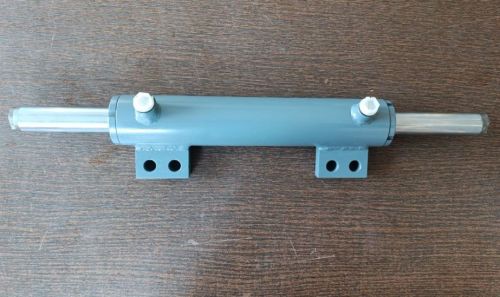

Yuvo 415 Hydraulic Power Steering Cylinder

This technical document presents the specifications and design features of the Hydraulic Power Steering Cylinder engineered for Yuvo 415 tractor series and compatible agricultural equipment. Unlike traditional single-rod cylinders, this unit features a premium through-rod (balanced double-rod) configuration, ensuring equal force and displacement in both left and right turning directions. Finished in a specialized industrial slate-grey protective powder coating, it provides superior resistance to mechanical wear, high operating heat, and mud or water exposure during heavy field conditions. Dual integrated side-mounting brackets allow for ultra-rigid, fixed chassis anchoring directly onto the front axle housing.

Engineering & Design Features :

• Balanced Double-Rod Setup : Engineered with a single continuous or synchronized double-ended rod exiting both sides of the main barrel. This delivers equal surface areas on both sides of the internal piston, providing symmetric steering speed and equal force in both directional turns.
• Rigid Side Block Mounting Flanges : Equipped with two heavy-duty welded anchoring blocks, each featuring two precision-drilled bolt-mounting holes. This layout ensures zero flexing or loosening along the steer axis under high torque loads.
• Thread-Preserving Protective Caps : Fitted with heavy-duty white plastic hex shipping plugs over the fluid intake ports to completely isolate internal seals and valve threads from dust, moisture, and debris during logistics and assembly staging.
