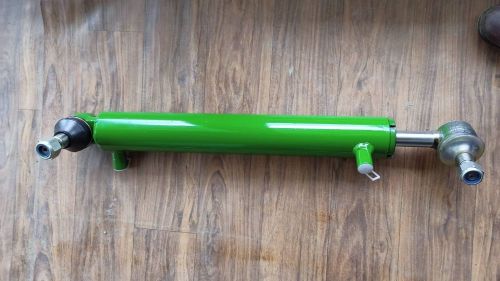

Single Type Hydraulic Power Steering Cylinder

This technical specification sheet presents the physical architecture and mechanical profile of the Hydraulic Power Steering Cylinder Green 4x4 Single. Specifically designed to support the intense mechanical demands of four-wheel-drive (4x4) steering linkages, agricultural tractors, and heavy utility steering arms, this double-acting linear cylinder delivers robust fluid conversion and steady power assist under rough terrain. Finished in a vibrant, high-gloss industrial green powder coating, the structural steel barrel provides extreme protection against oxidation, moisture, and chemical exposure in the field. The assembly features an integrated premium ball-joint terminal configuration on both ends to absorb fluctuating multi-angle wheel shocks.

Design & Engineering Highlights :

• Dual Ball Joint Terminal Interface : Equipped with high-capacity integrated ball joints on both ends. This symmetric dual ball stud layout accommodates compound pivoting movements, allowing the steering assembly to cycle across extreme 4x4 suspension travel without causing linear cylinder binding.
• Tractor Axle Fluid Ports : Designed with two robust fluid ports aligned perpendicular to the cylinder axis for smooth dual-chamber oil transfer. They come factory-sealed with white plastic protective shipping plugs to protect thread tolerances from dirt or shop grit prior to final plumbing.
• Heavy-Duty Structural Piston Rod : Features a high-tensile carbon-steel piston rod that is ground, polished, and hard chrome-plated to extend inner wiper seal longevity and withstand aggressive off-road shock impacts.
