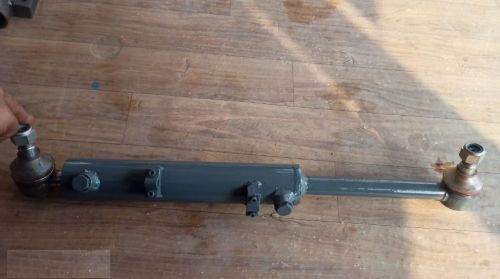

Swaraj Oem Hydraulic Power Steering Cylinder

This technical specification datasheet covers the mechanical engineering parameters and application scope of the Hydraulic Power Steering Cylinder Swaraj (O/M - Old Model configuration). Specially optimized for high-load tractor front-steer setups, this double-acting linear actuator converts raw steering pump pressure into smooth, high-torque directional control. The assembly features a signature industrial slate-grey anti-corrosion finish designed to provide rugged environmental protection against mud, humidity, and intense thermal strain common to standard off-road agricultural operations. The architecture features dual integrated split-clamp bolt mounts directly along the cylinder body alongside premium structural ball joints on both endpoints.

Design & Engineering Highlights :

• Dual-Ended Ball Joint Articulation : Fitted with high-flexibility threaded stud ball joints on both active ends, allowing complete range-of-motion freedom to absorb extreme front axle bouncing and steering angles without structural binding.
• Body-Integrated Split-Clamp Mounts : Engineered with two heavy-duty welded split-block bracket mounts directly on the barrel. This design ensures highly rigid, non-slip anchoring directly onto matching cross-bar steering structures.
• Hexagonal Thread Seal Plugs : Equipped with tight, factory-fitted hexagonal protective plugs inside the fluid entry ports to eliminate internal valve or thread contamination prior to vehicle assembly integration.
