Single Acting Hydraulic Power Steering Cylinder

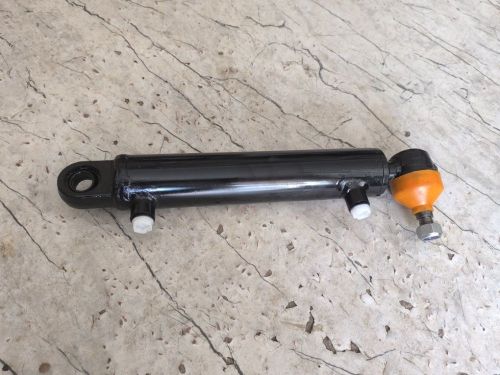

This technical specification sheet details the mechanical and design characteristics of the Hydraulic Power Steering Cylinder engineered for Sonalika tractor applications (Single side arrangement/configuration). This industrial-grade component provides responsive hydraulic actuation and assistive steering torque required for heavy-duty agricultural operations. Featuring a rugged high-gloss black protective coating, the cylinder provides exceptional environmental defense against mud, water, and heat. The configuration features an eyelet end mount on the cylinder base for fixed pivoting and a high-flexibility ball joint on the active piston rod end to translate linear stroke directly into smooth front axle steering geometry.

Engineering & Design Features :

• Premium Dust Boot Protection : The rod end ball joint assembly is enclosed in a heavy-duty, vibrant yellow/orange rubber dust boot. This design seals out fine agricultural dust, grit, fertilizer residues, and moisture, extending the service life of internal structural seals.
• Integrated Port Shipping Seals : Ships with pre-installed white hexagonal plastic thread caps on both fluid interface channels. This layout guarantees absolute cleanliness inside the double-acting cylinder barrel until final assembly connection.
• Optimized Double-Termination Design : The asymmetric setup—combining a robust pin-mount welded base eyelet with an articulation-ready stud ball-joint end—allows for quick retrofitting and uninhibited steering travel without axial binding.
