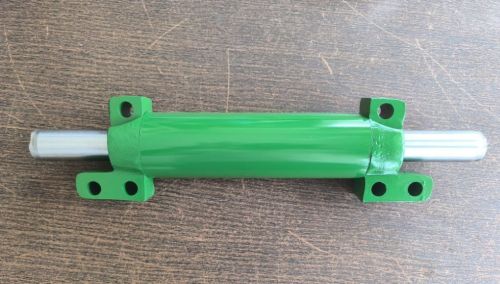

Global Series Hydraulic Power Steering Cylinder

This technical specification document defines the structural composition and mechanical parameters of the Hydraulic Power Steering Cylinder designated for the Green Global utility machinery and tractor series. Engineered with an advanced balanced through-rod (double-ended rod) kinematic layout, this cylinder provides completely symmetric fluid displacement. This design ensures that hydraulic thrust and linear travel speeds remain identical during both left-hand and right-hand steering inputs, eliminating steering bias on complex terrain. The body is treated with a robust, anti-corrosive industrial green powder coat to endure heavy thermal shifts, prolonged moisture, and debris impact. Featuring an integrated four-bolt heavy dual flange mount, it provides an ultra-stable and vibration-resistant connection directly onto front steer axle structures.

Design & Engineering Highlights :

• Symmetric Linear Performance : The continuous balanced double-rod extends identical surface profiles to both oil chambers within the main cylinder barrel. This configuration provides completely equalized force and response behavior during both directional extensions.
• Four-Bolt Rigid Flange Base : Unlike simple clamp-on or pin adapters, the Green Global model uses heavy structural steel side flanges welded directly to both ends of the main tube. Each flange features two precision-drilled bolt mounting points (four total) for maximum vibration dampening and secure attachment to the vehicle chassis.
• Hard Chrome Plated Piston Rods : The exposed double-ended piston shafts are ground and hard-plated to optimize friction coefficients, shield against micro-abrasions from field grit, and protect internal high-pressure wiper seals.
