| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Component Category | Hydraulic Power Steering Cylinder |
| Surface Finishing | Industrial Gloss Green / Anti-Oxidative Protective Powder Coating |
| Click to view more | |
Product Details
Kinematic Principle
Double-Acting Linear Actuation
Rod End Interface
High-Strength Threaded Stud Ball Joint / Tie-Rod End With Translucent/Clear Dust Boot
Base End Interface
Heavy-Duty Welded Cylinder Eyelet With Integrated Spherical Bearing / Bushing
Fluid Intake Connection
Dual Body-Welded Threaded Ports With Coordinated Green Protective Port Plugs
Target Applications
Agricultural Machinery Steering, Utility Equipment Axles, Tractors
Operating Fluid Medium
Mineral-based Hydraulic Oils Or Commercial Power Steering Fluids

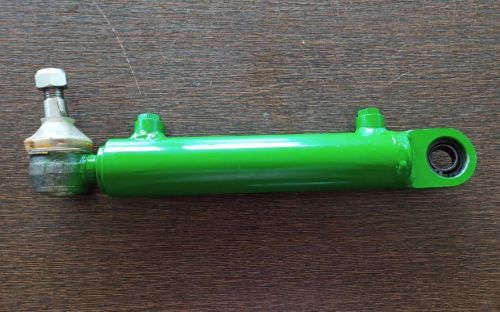

This technical specification sheet outlines the mechanical and structural profiles of the Hydraulic Power Steering Cylinder Green 5041c. Crafted specifically to support heavy-duty engineering requirements in modern agricultural systems, specialized utility machinery, and tractor steer assemblies, this double-acting linear actuator delivers reliable fluid translation and balanced power-steering control. Covered in a highly resilient industrial green anti-wear powder coat, the chassis protects internal components against prolonged outdoor field elements.
Design & Engineering Highlights :
- Asymmetric Mounting Layout : Engineered with a heavy-duty welded base eyelet for stationary chassis anchoring and a high-angle articulation stud ball-joint on the piston rod. This ensures seamless steering travel and prevents linear misalignment under high loads.
- Translucent Ball-Joint Protection Boot : The rod-end ball stud is fitted with a specialized clear/translucent flexible dust boot. This design traps critical factory grease while providing a physical barrier against mud, water, and sand.
- Coordinated Port Preservation : Equipped with factory-installed green steel-cap threaded plugs to match the main cylinder body color. These ensure total internal block cleanliness and line-thread integrity until installation.
