Balance Type Hydraulic Power Steering Cylinder

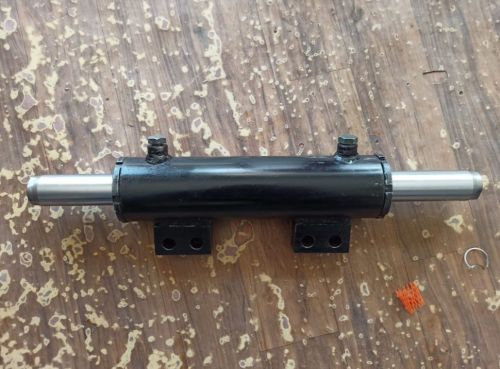

This component is a double-acting balanced hydraulic steering cylinder, commonly used in agricultural tractors such as those manufactured by Sonalika.

Key Features and Functions:*

• Balance Type : This cylinder features a double-ended rod design (the rod extends out of both sides of the cylinder barrel). This ensures that the volume of oil displaced on both sides of the piston is equal, providing uniform steering speed and force in both left and right directions.

Application :

• It is integral to the hydraulic power steering system of the tractor, translating hydraulic pressure from the steering unit (orbitrol) into mechanical force to turn the front wheels.

Construction :

• Barrel : A robust, black-painted steel housing that contains the piston and hydraulic fluid.
• Rod : Hardened, chrome-plated steel rods on either side, which are resistant to corrosion and wear.
• Mounting Points :  The cylinder features two sturdy mounting brackets on the barrel, which allow it to be securely bolted to the tractor's axle frame.
• Hydraulic Ports :  Two top-mounted ports are present for the connection of hydraulic hoses to supply and return fluid based on the desired steering direction.

Maintenance Tips :

• Seal Inspection : Periodically check for oil leaks around the rod seals, which can indicate worn internal components.
• Rod Protection : Ensure the exposed parts of the rods are free from dirt, rust, or damage to prevent premature failure of the seals.
• Hydraulic Fluid : Regularly check the tractor’s hydraulic fluid level and quality to ensure smooth operation and longevity of the cylinder seals and internal piston.
